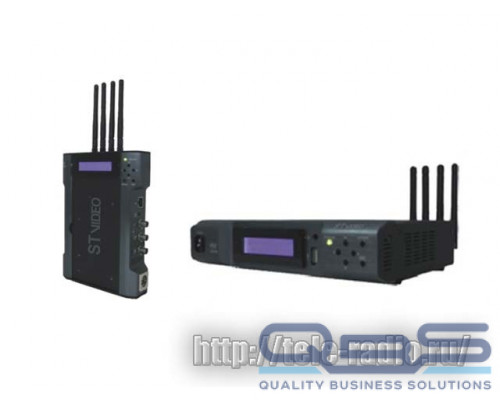

ST VIDEO STW1000

ST VIDEO-FILM STW1000 - накамерная система передачи аудио/видео

STW1000 Wireless HD Video Link System quotation 1000m Long-rang/Plug Play/Through Wall/Very Low Latency

Wireless HD Video Transmitter (передатчик)

• Bandwidth 40MHz
• Transmission Power 17dbm±6db(total23db indude 4antennas
• Wifi Standard 802.11n
• Tranmission Speed maximum 300Mbps
• Antenna External antenna×4
• Transmission Distance 200m-1000m
• Lantency ＜250ms
• Frequency 5GHz
• Encry Mode WPA2-PSK(AES)
• Video Format:
• 3G(LEVEL-A&LEVEL-B):1080/60P, 1080/59.94P, 1080/50P,
• HD:1080/60I,1080/59.94I,1080/50P,1080/50P,1080/29.97P,1080/25P,1080/24P,1080/23.98P,1080/30FSF,1080/29.97PSF,1080/25PSF,1080/24PSF,1080/23.98PSF,720/60P,720/59.94P, 720/50P
• SD: 525/59.94I, 625/501
• Audio Format PCM, 24Bit, 48kHz
• Electrical RS-422 interface
• Baud rate 9600/19200/38400/57600/115200/230400/460800bps
• Video Input SDI
• Video Output SDI×2
• Tally Output 1
• Video Remote control Output RS-422
• USB Interface USB type A(HOST) use for software upgrade
• Working Voltage DC 7-17V,12V(typical)
• Temperature 0-50℃

Wireless HD Video Receiver (приемник)

• Bandwidth 40MHz
• Transmission Power 17dbm±6db(total23db indude 4antennas
• Wifi Standard 802.11n
• Tranmission Speed maximum 300Mbps
• Antenna External antenna×4
• Transmission Distance 200m-1000m
• Lantency ＜250ms
• Frequency 5GHz
• Encry Mode WPA2-PSK(AES)
• Video Format:
• 3G(LEVEL-A&LEVEL-B):1080/60P, 1080/59.94P, 1080/50P,
• HD: 1080/60I,1080/59.94I,1080/50P,1080/50P,1080/29.97P,1080/25P,1080/24P,1080/23.98P,1080/30FSF,1080/29.97PSF,1080/25PSF,1080/24PSF,1080/23.98PSF,720/60P,720/59.94P, 720/50P
• SD: 525/59.94I, 625/501
• Audio Format PCM, 24Bit, 48kHz
• Electrical RS-422 interface
• Baud rate 9600/19200/38400/57600/115200/230400/460800bps
• Video Input SDI
• Video Output SDI×2
• Tally Output 1
• Video Remote control Output RS-422
• USB Interface USB type A(HOST) use for software upgrade
• Working Voltage DC 7-17V,12V(typical)
• Temperature 0-50℃

Опционально

10.1" Broadcasting Camera Monitor (KY10060HD)

• Resolution:1280×800pixels
• Dot pitch: 0.1695(H)×0.1695（V)mm
• Aspect ratio: 16:10
• Brightness: 650cd/㎡
• Contrast: 800:1
• Backlight: LED
• Viewing Angle: 89°/89°（L/R) 89°/89°（U/D)

Broadcast Camera Battery

• Capacity: 100Wh, 130Wh, 160Wh, 190Wh, 250Wh
• Interface: Both V-mount and Gold-mount
• ·Cool black case, with USB output
• ·5-level LED power indicator
• ·Working temperature: -20°C~+55°C
• ·Chargeable li-ion battery, no memory effect

Battery Charger

• Power: 100Wh/200Wh
• Interface: Both V-mount and Gold-mount
• ·Input: 100~240VAC 47~63Hz
• ·Charging Output: 16.8V/2A
• ·DC Output: 16.4V/5A
