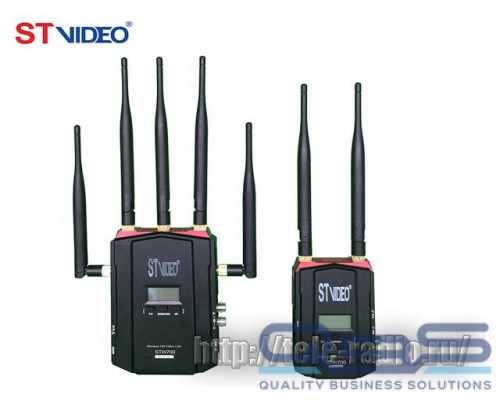

ST VIDEO-FILM STW700 Wireless HD Video

ST VIDEO-FILM STW700 Wireless HD радиосистема для видеокамер

• Support SDI/HDMI output from digital movie camera, HD video camera and other professional devices.
• Real-time wireless HD video transmission with very low latency
• Wireless transmission distance :700meters (clear transmission)
• Support Multi-point-receiving
• Support Time Code
• Support manually set the channel
• External antenna with PRSMA socket
• Professional LEMO socket ensure the stability of power supply while moving
• Built-in LCD screen displays device status and information
• No software needed , full hardware for plug&play
• Support standard V-mount, 1/4 screw, easy to be fixed

Wireless HD Transmitter

• Frequency : 5GHz
• Transmission Power : 20dBm
• Antenna : External antenna×2
• Band width : 40MHz
• Video Formats : 1080p 23.98/24/25/30/50/60 , 1080psf23.98/24/25 , 1080i50/59.94/60 , 720p 50/59.94/60 , 576p 576i 480p 480i
• Audio Fromats : PCM, DTS-HD, Dolby TrueHD
• Transmission Distance : 700m(clear transmission)
• Interface : HDMI IN;SDI IN; SDI LOOP; Mini USB; LEMO(OB/2core); POWER IN; RPSMA Antenna; Power Switch
• Mounting Interface : 1/4 inch screw, V-mount
• LCD screen dispaly : Frequency;Channel;etc.
• Working Voltage : DC 6V-17V
• Power Consumption : 7-8W
• Dimensions : 126.5×75×31.5mm
• Temperature : -10~50Celcius (Working), -40~80Celcius (Storage)

Wireless HD Receiver

• Frequency : 5GHz
• Transmission Power : -70dBm
• Antenna : External antenna×5
• Band width : 40MHz
• Video Formats : 1080p 23.98/24/25/30/50/60, 1080psf23.98/24/25, 1080i50/59.94/60, 720p 50/59.94/60, 576p 576i 480p 480i
• Audio Fromats : PCM, DTS-HD, Dolby TrueHD
• Transmission Distance : 700m(clear transmission)
• Interface : 3G-SDI IN;HDMI IN;SDI IN; SDI LOOP; Mini USB; POWER SWITCH; LEMO(OB/2core); POWER IN; RPSMA Antenna; Power Switch
• Mounting Interface : 1/4 inch screw, V-mount
• LCD screen dispaly : Frequency;Channel;etc.
• Working Voltage : DC 6V-17V
• Power Consumption : 12W
• Dimensions : 155×111×32mm
• Temperature : -10~60Celcius (Working), -40~80Celcius (Storage)
• HDMI/SDI Interface.
