Модель:

BM-VHUB12G4040

Производитель:

Blackmagic

Наличие:

5 шт.

777 238 ₽

0 отзывов

Доставка послезавтра и позже, от 490 ₽
Самовывоз сегодня, бесплатно

Тип коммутационно-распределительного оборудования

Коммутатор-маршрутизатор

Все характеристики

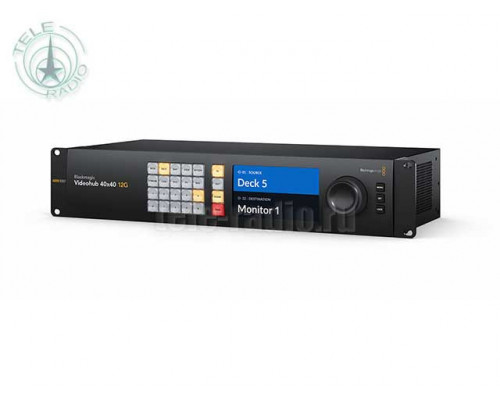

Blackmagic Videohub 40x40 12G - усовершенствованный видеомаршрутизатор с нулевой задержкой, который одновременно поддерживает любую комбинацию SD, HD и Ultra HD.

Имеет 40 входов 12G-SDI, 40 выходов 12G-SDI, резервное питание, повторную синхронизацию SDI.

Поддерживает управление через внешний Ethernet, все видеостандарты SDI вплоть до 2160p60.

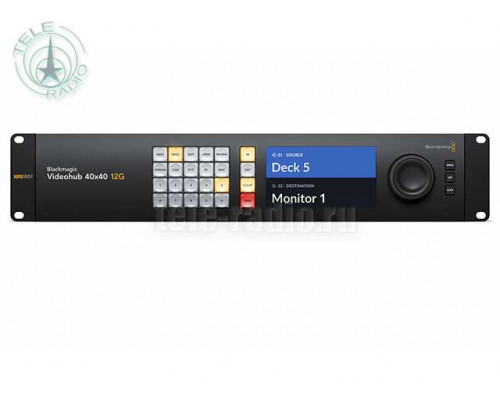

С помощью функции визуальной маршрутизации можно выбирать направления коммутации, выводить списки подключенных устройств на встроенный ЖК-дисплей, используя удобную ручку прокрутки.

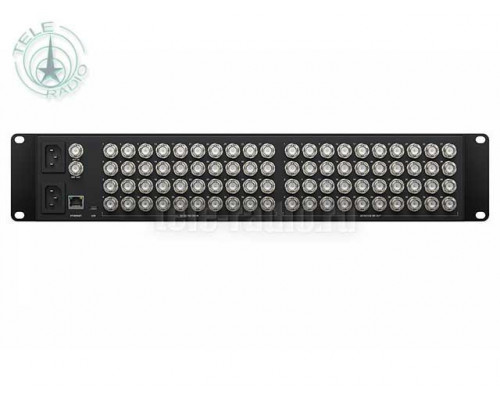

Connections
SDI Video Inputs	40
SDI Video Outputs	40
SDI Rates	DVB-ASI, 270Mb, 1.5G, 3G, 6G, 12G.
Video Input Re-Sync	None
SDI Reclocking	On all SDI outputs.
Reference Inputs	Tri-Sync or Black Burst.
Reference Outputs	Reference terminating loop output.
Ethernet	Supports 10/100/1000 BASE‑T.
Computer Interface	USB‑C
Standards
SD Video Standards	525i59.94 NTSC, 625i50 PAL
HD Video Standards	720p50, 720p59.94, 720p60
	1080i50, 1080i59.94, 1080i60
	1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60
	1080PsF23,98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2K Video Standards	2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2K Video Standards	2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
Ultra HD Video Standards	2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Video Standards	4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI Compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B
SDI Compliance	SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-10, ITU‑R BT.656 and ITU‑R BT.601
SDI Audio Sampling	Television standard sample rate of 48kHz and 24-bit.
SDI Video Sampling	YUV 4:2:2 and RGB 4:4:4
SDI Color Precision	10, 12‑bit RGB 4:4:4 in all HD and 2K modes, Ultra HD modes up to 2160p30 and 4K modes up to 4Kp30 DCI. 10-bit YUV 4:2:2 in all modes.
SDI Color Space	REC 601, REC 709, REC 2020
SDI Auto Switching	Automatically selects between 270Mb SD‑SDI, 1.5G HD‑SDI, 3G level A and level B HD‑SDI, 6G HD‑SDI, 12G‑SDI and DVB‑ASI on each input so that each input can be running a different television standard.
SDI Metadata Support	Video payload identification ancillary data as per SMPTE 352M.
Control
Built in Control Panel	24 buttons for local control of Videohub with 3 buttons and search dial for menu control. 5 inch color display.
External Control Panel	Includes Blackmagic Videohub software control panel for Mac and Windows. Supports Videohub Smart Control Pro and Videohub Master Control Pro hardware panels. Includes Blackmagic Videohub SDK and Ethernet Videohub Control Protocol.
Control Panel Connection	Ethernet
Software
Software Control	Router control included free for Windows™ and Mac™.
Internal Software Upgrade	Via included updater application.
Operating Systems
	Mac 12.0 Monterey,
	Mac 13.0 Ventura or later.
	Windows 10, 64-bit.
	Windows 11.
Display
Displays	Built in 5 inch LCD for video and menu settings.
Power Requirements
Power Supply	2 x Internal 100 - 240V AC 50/60Hz.
Power Supply	IEC power cables required.
Power Fail Protection	Crosspoint connections preserved and restored instantly at power on.
Power Usage	46.5 W max.
Physical Installation
2 rack units height.
Physical Specifications
	19х3.46х9.37 (in) 12.3 (lb)
Environmental Specifications
Operating Temperature	0° to 40° C (32° to 104° F)
Storage Temperature	-20° to 60° C (-4° to 140° F)
Relative Humidity	0% to 90% non-condensing
What's Included
Blackmagic Videohub 40x40 12G
Welcome wallet with QR code for software download
Warranty
3 Year Limited Manufacturer's Warranty, and 12 Month Warranty on the front panel.
