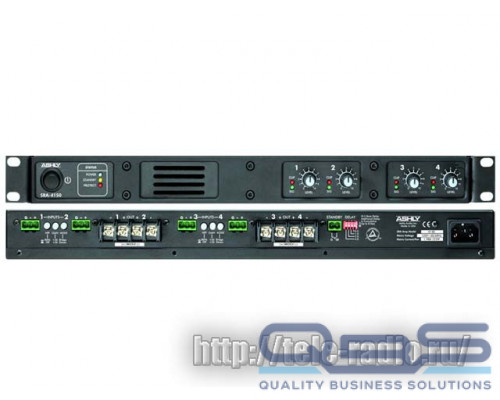

Ashly - усилители звука, серия SRA

Ashly - усилители звука, серия SRA

• Ashly SRA-2075 8Ом 2x40Вт/4Ом 2x75Вт, 4.08кг
• Ashly SRA-2150 8Ом 2x80Вт/4Ом 2x150Вт, 4.08кг

Технические характеристики Ashly SRA 2075

• Rated Power 8 ohms (Stereo): 2x40W
• Rated Power 4 ohms (Stereo): 2x75W
• Rated Power 8 ohms (Bridged Mono): 1x150W
• Rated Power 25V (Stereo): Not Rated
• S/N (20 Hz-20 kHz, unweighted): >98dB
• 1/8th Output (Pink Noise @ 4 Ohm): 18.75W
• 1/8th Draw (Pink Noise @ 4 Ohm): 39.0W
• 1/8th Current (Pink Noise @ 4 Ohm): 0.69A
• Idle Power (Pink Noise @ 4 Ohm): 17.0W
• Idle Current (Pink Noise @ 4 Ohm): 0.30A
• Weight: 4.08kg
• Frequency Response (8 ohms): 20 Hz - 20k Hz, ± 1.0 dB
• Input Impedance: 20 k ohms, balanced
• Input Sensitivity: 26dBu, 36dBu
• Maximum Input Level: +21dBu
• Damping Factor (8 ohms): > 200
• Cooling: Convection
• Output Circuitry: Class D
• Connectors (each channel): Input - each channel 3- Pin Euroblock
• Output - each channel Screw terminals
• Front Controls: AC Power Switch, Input Attenuators
• Front indicators (LED color): Power (Blue), Standby (Yellow), Protect (Red), Clip (Red), Signal Present (Green)
• Rear Controls: Mode: Bridge, Stereo; Gain / Sensitivity: +26dB, +36dB; High Pass (each channel): Off, 80 Hz; Remote On/Off; Delay
• Amplifier and Load Protection: Output Overcurent, DC Output, Main Supply Rail Overvoltage, Chassis Temperature, Inrush Limiting, Mains Fuse
• Cordset: 3-Prong IEC
• Dimensions: Height: 1.75'' (44.5mm) 1RU, Width: 19'' (483 mm), Depth: 11.0'' (279.4mm)
